TL42-30W
iTrack Pro

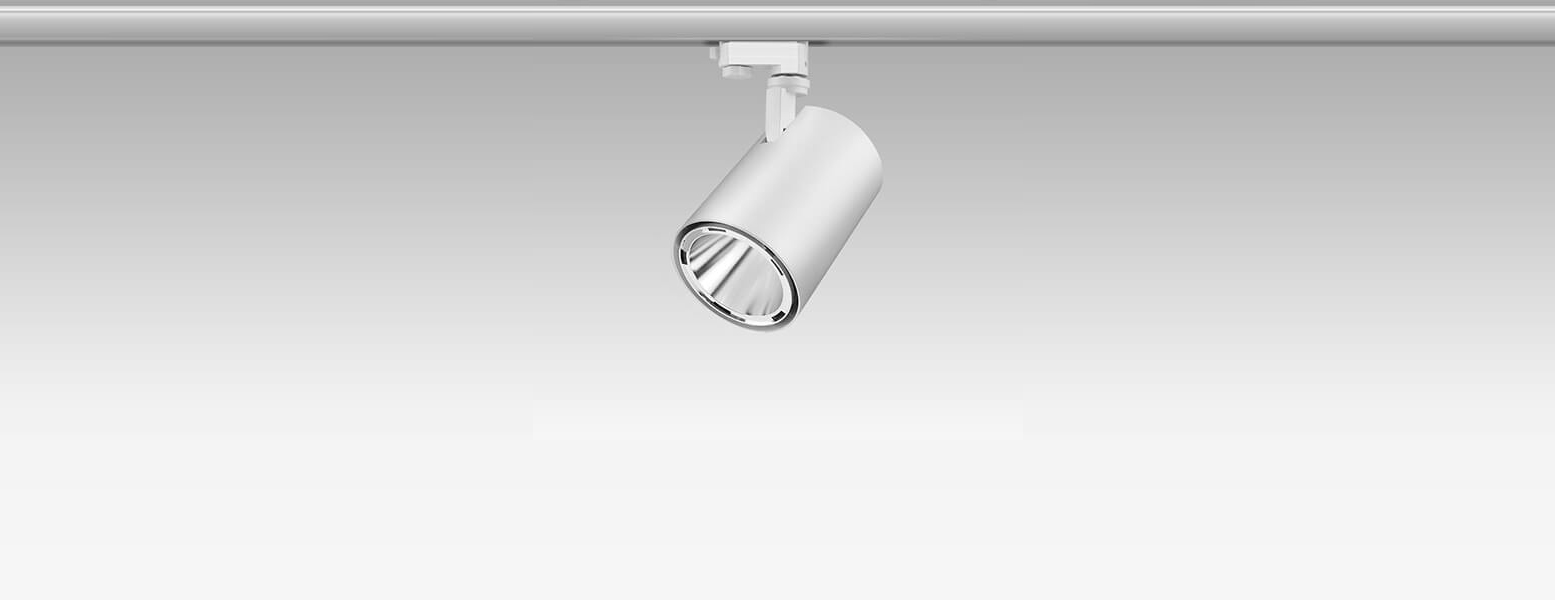

This track spot is featured with integrated design, compact size and powerful light output (up to 2000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.
Light source: | COB |
Input Voltage: | AC220~240V 50/60Hz |
Current: | 500mA,35-37V |
Rated life: | >50,000 hours |
Operating temperature: | -20℃~40℃ |
Storage temperature: | -30℃~60℃ |
Certificate: | CE/RoHS |
Weight: | 0.95KG |
Master carton dimensions(mm): |
L130*W130H310mm(Box) L665*W405*H280mm(Outer carton) |
Quantity per carton(PCS): |
1pc/box 15pcs/CTN |
G.W. Carton (Kg): |
1.15kg/box 19kg/carton |
Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
20W | >80 | 10° | 2040 lm | 3000K | TL254-20W-830-W-10 | |
TL254-20W-830-B-10 | ||||||
2050 lm | 4000K | TL254-20W-840-W-10 | ||||
TL254-20W-840-B-10 | ||||||
20° | 2060 lm | 3000K | TL254-20W-830-W-20 | |||
TL254-20W-830-B-20 | ||||||
2060 lm | 4000K | TL254-20W-840-W-20 | ||||
TL254-20W-840-B-20 | ||||||
38° | 2050 lm | 3000K | TL254-20W-830-W-38 | |||
TL254-20W-830-B-38 | ||||||
2040 lm | 4000K | TL254-20W-840-W-38 | ||||
TL254-20W-840-B-38 | ||||||
>90 | 10° | 1730 lm | 3000K | TL254-20W-930-W-10 | ||
TL254-20W-930-B-10 | ||||||
1870 lm | 4000K | TL254-20W-940-W-10 | ||||
TL254-20W-940-B-10 | ||||||
20° | 1750 lm | 3000K | TL254-20W-930-W-20 | |||
TL254-20W-930-B-20 | ||||||
1900 lm | 4000K | TL254-20W-940-W-20 | ||||
TL254-20W-940-B-20 | ||||||
38° | 1750 lm | 3000K | TL254-20W-930-W-38 | |||
TL254-20W-930-B-38 | ||||||
1890 lm | 4000K | TL254-20W-940-W-38 | ||||
TL254-20W-940-B-38 |
