Track Lighting

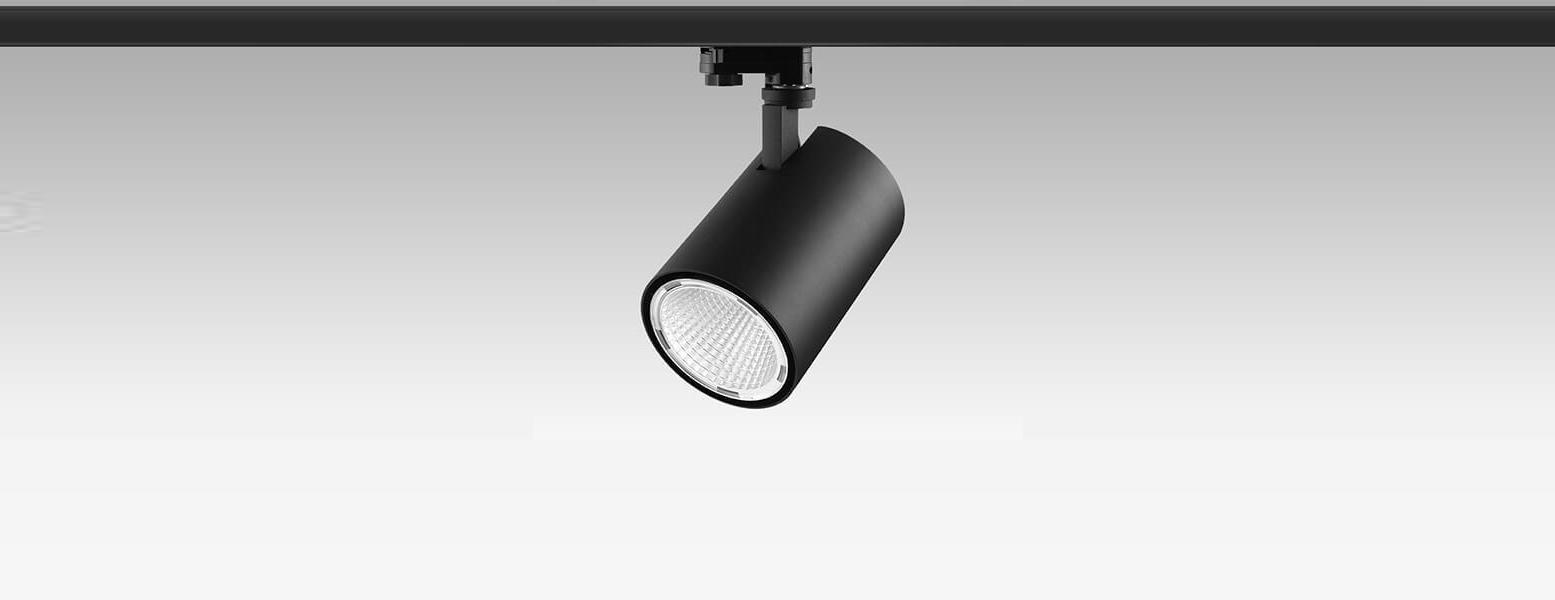

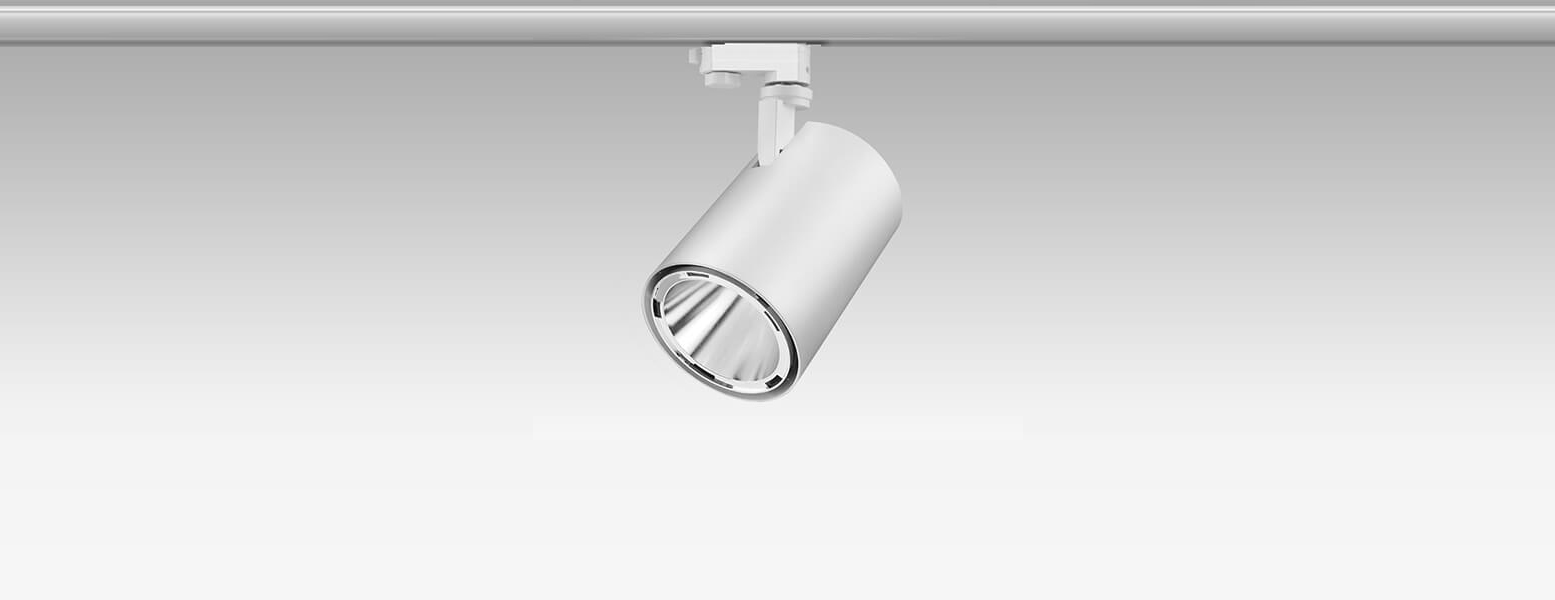

TL11-40W

This track spot is featured with integrated design, compact size and powerful light output (up to 2000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 1000mA,35-37V
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: TUV/CE/RoHS
Weight: 1.75KG

Packaging
information

Master carton dimensions(mm): 450x360x300(Box)
L720xW310xH370mm(Outer carton)
G.W. Carton (Kg): 1pc/box
10 pcs/CTN
Quantity per carton(PCS): 2.0kg/box
21.5kg/carton

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
40W >80 >12° 4140 lm 3000K   TL114-40W-830-W-12
  TL114-40W-830-B-12
4420 lm 4000K   TL114-40W-840-W-12
  TL114-40W-840-B-12
20° 4180 lm 3000K   TL114-40W-830-W-20
  TL114-40W-830-B-20
4350 lm 4000K   TL114-40W-840-W-20
  TL114-40W-840-B-20
45° 4030 lm 3000K   TL114-40W-830-W-45
  TL114-40W-830-B-45
4140 lm 4000K   TL114-40W-840-W-45
  TL114-40W-840-B-45
>90 12° 3530 lm 3000K   TL114-40W-930-W-12
  TL114-40W-930-B-12
3700 lm 4000K   TL114-40W-940-W-12
  TL114-40W-940-B-12
20° 3550 lm 3000K   TL114-40W-930-W-20
  TL114-40W-930-B-20
3740 lm 4000K   TL114-40W-940-W-20
  TL114-40W-940-B-20
45° 3400 lm 3000K   TL114-40W-930-W-45
  TL114-40W-930-B-45
3650 lm 4000K   TL114-40W-940-W-45
  TL114-40W-940-B-45

Size
