TL42-30W
iTrack Pro
48V Track Mounted
TL18-30W
This track spot is featured with integrated design, powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 12,20 and 45 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications. This track mounted luminaire is also available in pendant and surface mounted forms.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 700mA,35-37V |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Weight: | 2.0KG |
Packaging
information
| Master carton dimensions(mm)： |
L320*W140*H320 mm(Box) L670Xw500xH350mm(Outer carton) |
| Quantity per carton(PCS)： |
1pc/box 6 pcs/CTN |
| G.W. Carton (Kg)： |
2.0kg/box 14kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 30W | >80 | 12° | 2830 lm | 3000K | TL184-30W-830-W-12 | |
| TL184-30W-830-B-12 | ||||||
| 3030 lm | 4000K | TL184-30W-840-W-12 | ||||
| TL184-30W-840-B-12 | ||||||
| 20° | 2860 lm | 3000K | TL184-30W-830-W-20 | |||
| TL184-30W-830-B-20 | ||||||
| 3050 lm | 4000K | TL184-30W-840-W-20 | ||||
| TL184-30W-840-B-20 | ||||||
| 45° | 2740 lm | 3000K | TL184-30W-830-W-45 | |||
| TL184-30W-830-B-45 | ||||||
| 2920 lm | 4000K | TL184-30W-840-W-45 | ||||
| TL184-30W-840-B-45 | ||||||
| >90 | 12° | 2590 lm | 3000K | TL184-30W-930-W-12 | ||
| TL184-30W-930-B-12 | ||||||
| 2690 lm | 4000K | TL184-30W-940-W-12 | ||||
| TL184-30W-940-B-12 | ||||||
| 20° | 2600 lm | 3000K | TL184-30W-930-W-20 | |||
| TL184-30W-930-B-20 | ||||||
| 2720 lm | 4000K | TL184-30W-940-W-20 | ||||
| TL184-30W-940-B-20 | ||||||
| 45° | 2780 lm | 3000K | TL184-30W-930-W-45 | |||
| TL184-30W-930-B-45 | ||||||
| 2600 lm | 4000K | TL184-30W-940-W-45 | ||||
| TL184-30W-940-B-45 |
Downloads

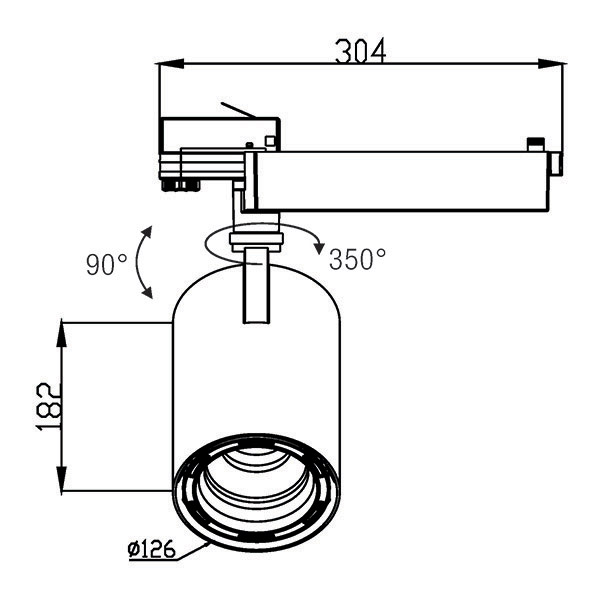

Size
