DL102-40W
Exlite
Ceiling Mounted

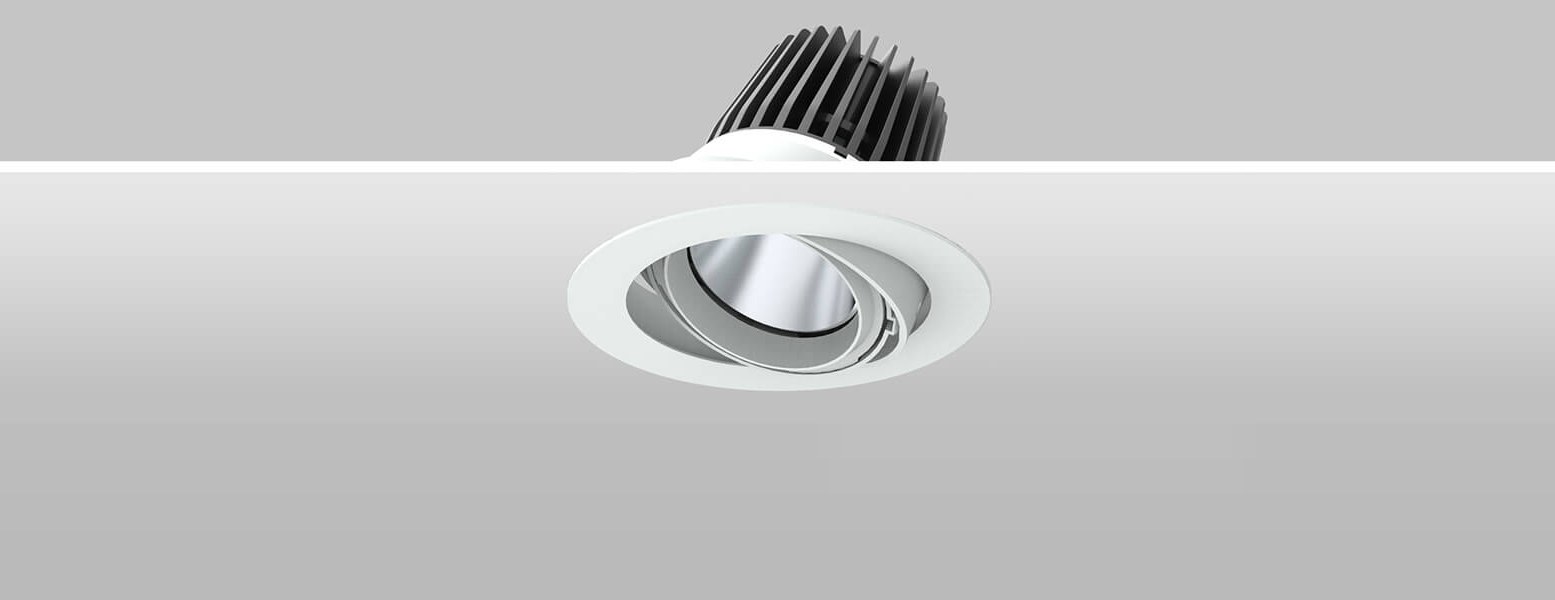

DL101-40W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 4000lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 1000mA (35-37V) |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 1.2KG |
Packaging
information
| Master carton dimensions(mm)： |
L210*W210*H190mm (Box) L450xW450xH410mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 8pcs/CTN |
| G.W. Carton (Kg)： |
1.6kg/box (With non-dimmable driver) 14kg/carton (With non-dimmable driver) 1.65kg/box (With Triac dimmable drive 14.5kg/carton (With Triac dimmable) |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 40W | >80 | 15° | 4330 lm | 3000K | DL101-40W-830-W-15-02 | |
| 4390 lm | 4000K | DL101-40W-840-W-15-02 | ||||
| 20° | 4370 lm | 3000K | DL101-40W-830-W-20-02 | |||
| 4500 lm | 4000K | DL101-40W-840-W-20-02 | ||||
| 45° | 4340 lm | 3000K | DL101-40W-830-W-45-02 | |||
| 4570 lm | 4000K | DL101-40W-840-W-45-02 | ||||
| >90 | 15° | 3930 lm | 3000K | DL101-40W-930-W-15-02 | ||
| 3750 lm | 4000K | DL101-40W-940-W-15-02 | ||||
| 20° | 3790 lm | 3000K | DL101-40W-930-W-20-02 | |||
| 3830 lm | 4000K | DL101-40W-940-W-20-02 | ||||
| 45° | 3760 lm | 3000K | DL101-40W-930-W-45-02 | |||
| 3890 lm | 4000K | DL101-40W-940-W-45-02 |
Downloads

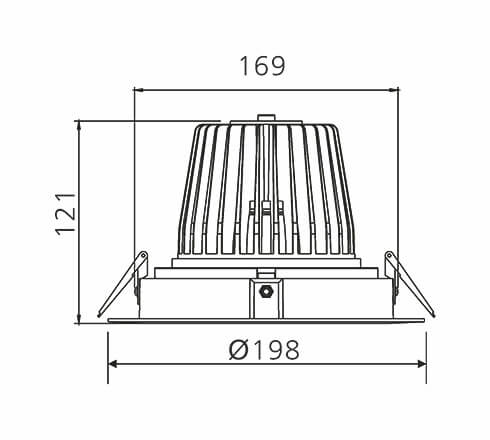

Size
Need more informations? Contact us
