Ceiling Mounted

DL081-20W

This track spot is featured with integrated design, powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 12,20 and 45 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications. This track mounted luminaire is also available in pendant and surface mounted forms.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
LED Current: 500mA (35-37V)
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: TUV/CE/RoHS
Dimmability: Dimmable Optional
Weight: 0.5KG

Packaging
information

Master carton dimensions(mm): L140*W140*H160mm (Box)
L730*W310*H350mm(Outer carton )
Quantity per carton(PCS): 1pc/box
20pcs/CTN
G.W. Carton (Kg): 0.7kg/box
15kg/carton

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
20W >80 15° 2190 lm 3000K   DL081-20W-830-W-15-02
2190 lm 4000K   DL081-20W-840-W-15-02
28° 2190 lm 3000K   DL081-20W-830-W-28-02
2180 lm 4000K   DL081-20W-840-W-28-02
36° 2190 lm 3000K   DL081-20W-830-W-36-02
2180 lm 4000K   DL081-20W-840-W-36-02
>90 15° 1810 lm 3000K   DL081-20W-930-W-15-02
2000 lm 4000K   DL081-20W-940-W-15-02
28° 1800 lm 3000K   DL081-20W-930-W-28-02
1990 lm 4000K   DL081-20W-940-W-28-02
36° 1800 lm 3000K   DL081-20W-930-W-36-02
2000 lm 4000K   DL081-20W-940-W-36-02

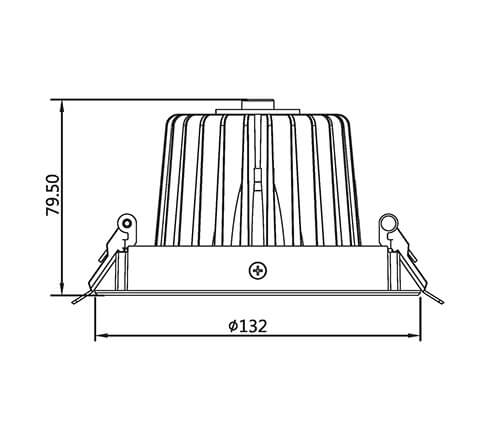

Size

Need more informations? Contact us
