DL102-40W
Exlite
Ceiling Mounted
DL101-30W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2050lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 700mA (35-37V) |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | TUV/CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: | 1.2KG |
Packaging
information
| Master carton dimensions(mm)： |
L210*W210*H190mm(Box) L450xW450xH410mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 8pcs/CTN |
| G.W. Carton (Kg)： |
1.6kg/box (With non-dimmable driver) 14kg/carton (With non-dimmable driver) 1.65kg/box (With Triac dimmable drive 14.5kg/carton (With Triac dimmable) |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 30W | >80 | 15° | 2980 lm | 3000K | DL101-30W-830-W-15-02 | |
| 3160 lm | 4000K | DL101-30W-840-W-15-02 | ||||
| 20° | 3010 lm | 3000K | DL101-30W-830-W-20-02 | |||
| 3250 lm | 4000K | DL101-30W-840-W-20-02 | ||||
| 45° | 2990 lm | 3000K | DL101-30W-830-W-45-02 | |||
| 3190 lm | 4000K | DL101-30W-840-W-45-02 | ||||
| >90 | 15° | 2670 lm | 3000K | DL101-30W-930-W-15-02 | ||
| 2810 lm | 4000K | DL101-30W-940-W-15-02 | ||||
| 20° | 2700 lm | 3000K | DL101-30W-930-W-20-02 | |||
| 2830 lm | 4000K | DL101-30W-940-W-20-02 | ||||
| 45° | 2680 lm | 3000K | DL101-30W-930-W-45-02 | |||
| 2810 lm | 4000K | DL101-30W-940-W-45-02 |
Downloads

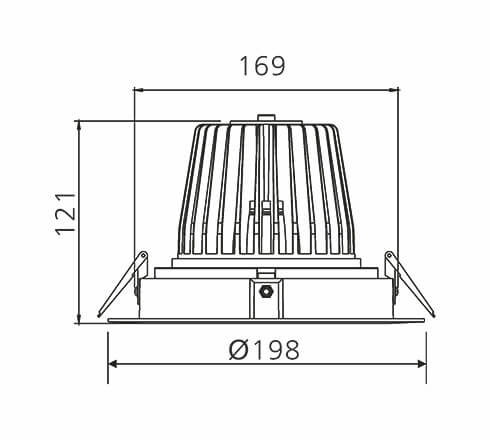

Size
Need more informations? Contact us
