M042-20W
Modular Systems
Products

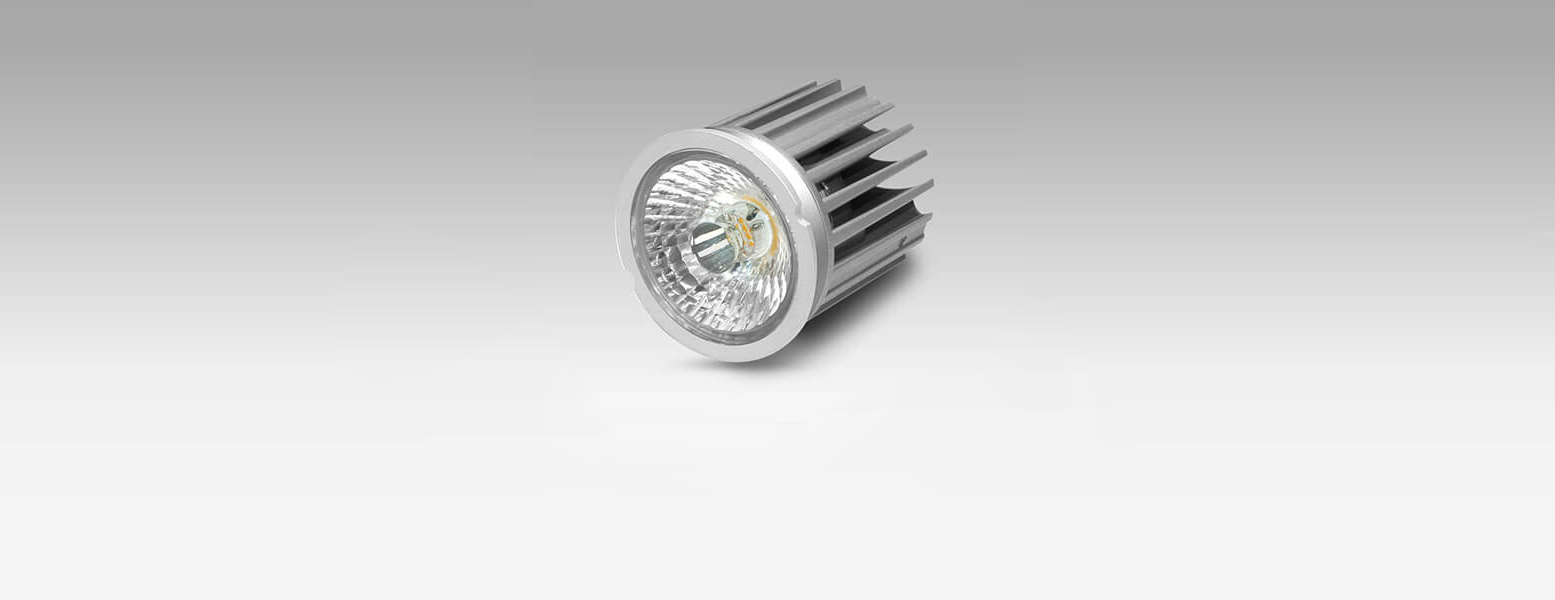

M012-8W
This family is featured with interchangeable light engine system. 3 light engines of different size can be changed in between more than 7 types of various fittings which can be either fixed or directable, flat or deeply recessed, double or single. The Halolite family using superior optics providing outstanding performance that create the same light effect as that of the halogen lamps. Ideal recessed spot for homes and shops with intimate lighting atmosphere.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| Current: | 350mA(17.8V) |
| Rated life: | >50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE/RoHS |
| Dimmability: | Dimmable Optional |
| Weight: |
0.087KG (M011) / 0.14KG (M0112) 0.18KG (M0113) / 0.18KG (M0114) 0.18KG (M0115) / 0.21KG (M0116) |
Packaging
information
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 8W | >80 | 15° | 530 lm | 2700K | M012*-8W-827-S-15 | |
| 600 lm | 3000K | M012*-8W-830-S-15 | ||||
| 650 lm | 4000K | M012*-8W-840-S-15 | ||||
| 24° | 520 lm | 2700K | M012*-8W-827-S-24 | |||
| 640 lm | 3000K | M012*-8W-830-S-24 | ||||
| 710 lm | 4000K | M012*-8W-840-S-24 | ||||
| 38° | 530 lm | 2700K | M012*-8W-827-S-38 | |||
| 630 lm | 3000K | M012*-8W-830-S-38 | ||||
| 680 lm | 4000K | M012*-8W-840-S-38 | ||||
| 60° | 530 lm | 2700K | M012*-8W-827-S-60 | |||
| 650 lm | 3000K | M012*-8W-830-S-60 | ||||
| 700 lm | 4000K | M012*-8W-840-S-60 | ||||
| >90 | 15° | 510 lm | 2700K | M012*-8W-927-S-15 | ||
| 610 lm | 3000K | M012*-8W-930-S-15 | ||||
| 24° | 500 lm | 2700K | M012*-8W-927-S-24 | |||
| 650 lm | 3000K | M012*-8W-930-S-24 | ||||
| 38° | 510 lm | 2700K | M012*-8W-927-S-38 | |||
| 630 lm | 3000K | M012*-8W-930-S-38 | ||||
| 60° | 510 lm | 2700K | M012*-8W-927-S-60 | |||
| 650 lm | 3000K | M012*-8W-930-S-60 |
Downloads

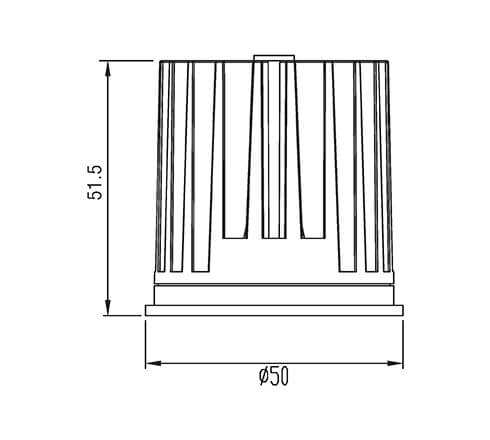

Size
