ALTP35-07
Product
information
| Product number | ALTP35 - 07 |
| Track System: | 4 wire |
| Input Voltage (v): | 220-240V AC |
| Dimming | On/Off |
| Light source | COB LED |
| luminaire Lifetime | 50.000h（L80-B10, Ta25°C） |
| Rotation Angle (degree) | N/A |
| Tilting Angle (degree) | N/A |
| IP Rating | 20 |
| Working Temperature (°C) | -5 ~ +30 |
| Storage Temperature (°C) | -20 ~+50 |
| Material | Aluminium |
| Fitting Colors | 9016 Sandy White / 9017 Sandy Black |
Packaging
information
| N.W. lamp (Kg) | 0.42 |
| G.W. Carton (Kg) | 16 |
| Master carton dimensions(mm) | 520x420x365 |
| Quantity per carton(PCS) | 32 |
System
overview
| Beam | Watt | CRI | Luminous | CCT | Code |
17 |
07W | 90 | 651.6 lm | 4000K | ALTP35S-402NC07G40-S |
| 614.7 lm | 3000K | ALTP35S-402NC07G30-S | |||
| 571.7 lm | 2700K | ALTP35S-402NC07G27-S | |||
24 |
07W | 90 | 648.6 lm | 4000K | ALTP35S-402NC07G40-M |
| 611.9 lm | 3000K | ALTP35S-402NC07G30-M | |||
| 569.1 lm | 2700K | ALTP35S-402NC07G27-M | |||
34 |
07W | 90 | 651.6 lm | 4000K | ALTP35S-402NC07G40-F |
| 614.7 lm | 3000K | ALTP35S-402NC07G30-F | |||
| 571.7 lm | 2700K | ALTP35S-402NC07G27-F |
Downloads

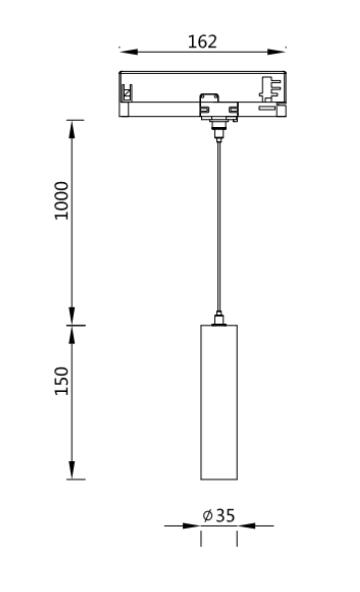

Size
Need more informations? Contact us
