  • TL30-30W
  • iTrack Vera - TL30-30W

48V Track Mounted

TL30-30W

This track spot is featured with integrated design, compact size and powerful light output (up to 2000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13), all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 700mA,35-37
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate:
Weight: 1.15KG

Packaging
information

Master carton dimensions(mm): L135*W115*H310mm(Box)
L670Xw500xH350mm(Outer carton)
Quantity per carton(PCS): 1pc/box
12 pcs/CTN
G.W. Carton (Kg): 1.25kg/box
16.5kg/carton

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
30W >80 15° 2719 lm 3000K   TL304-30W-830-W-15
  TL304-30W-830-B-15
2871 lm 4000K   TL304-30W-840-W-15
  TL304-30W-840-B-15
24° 2694 lm 3000K   TL304-30W-840-W-24
  TL304-30W-840-B-24
2924 lm 4000K   TL304-30W-840-W-24
  TL304-30W-840-B-24
36° 2694 lm 3000K   TL304-30W-840-W-36
  TL304-30W-840-B-36
2856 lm 4000K   TL304-30W-840-W-36
  TL304-30W-840-B-36
>90 15° 2205 lm 3000K   TL304-30W-930-W-15
  TL304-30W-930-B-15
24° 2205 lm 3000K   TL304-30W-930-W-24
  TL304-30W-930-B-24
36° 2205 lm 3000K   TL304-30W-930-W-36
  TL304-30W-930-B-36

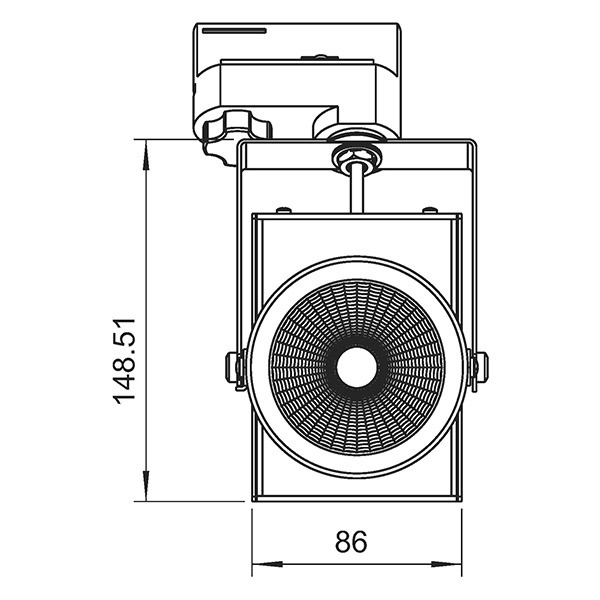

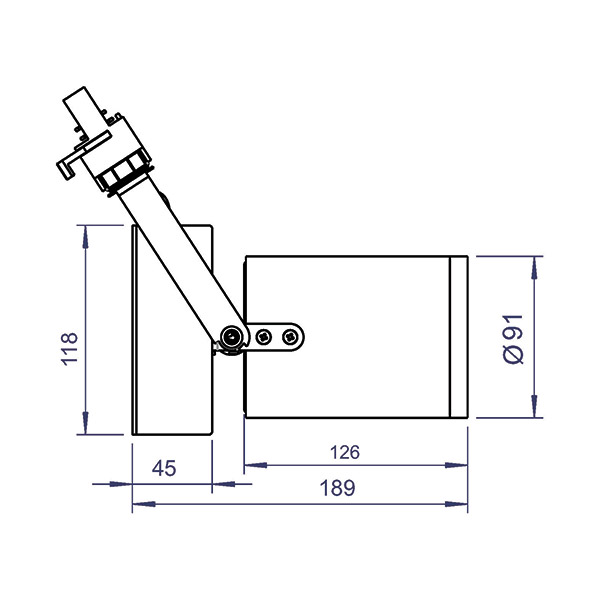

Size
