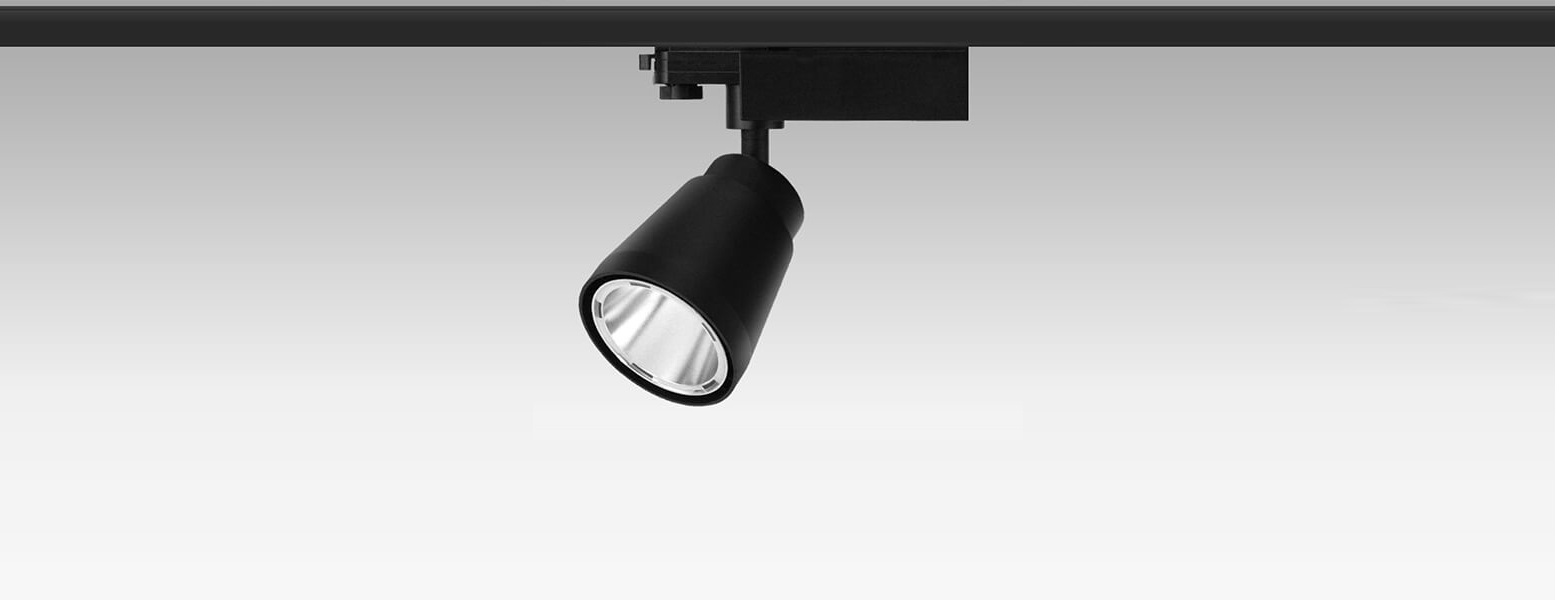

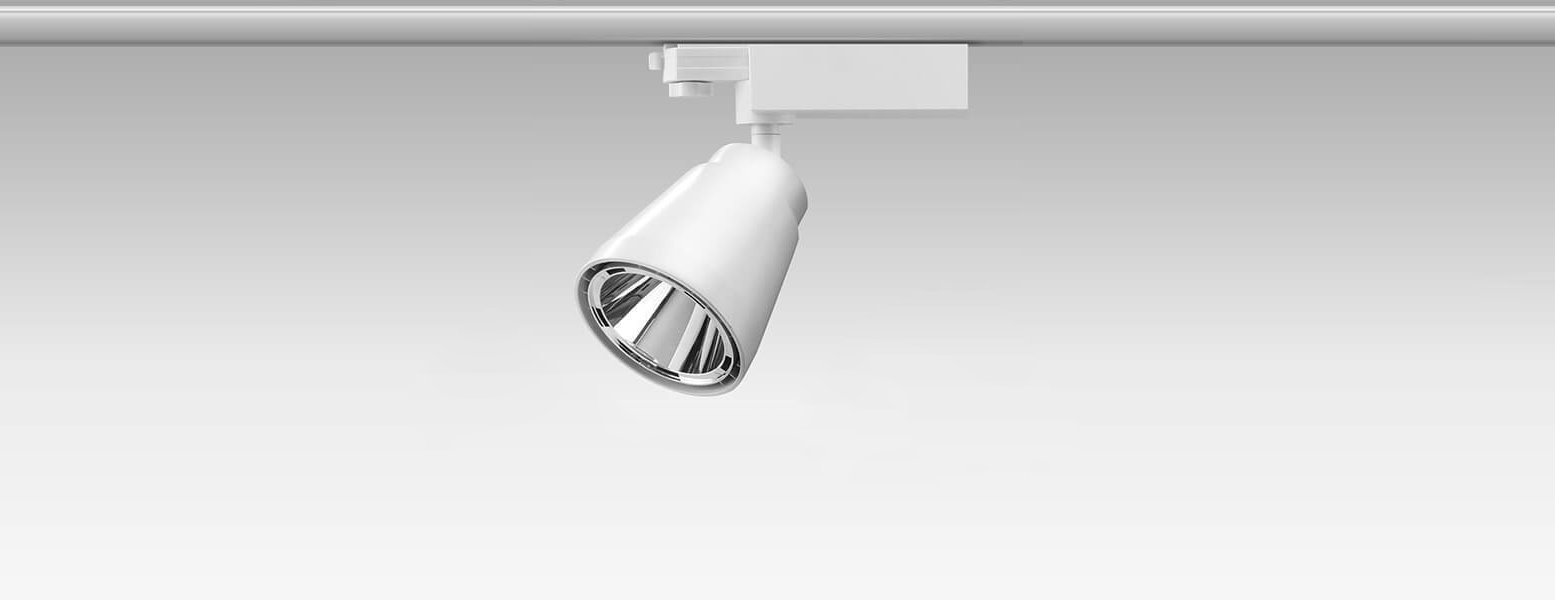

48V Track Mounted

TL22-20W

This track spot is featured with integrated design, compact size and powerful light output (up to 2000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13), all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 10,20 and 38 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 500mA,35-37V
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: CE/RoHS
Weight: 1.15KG

Packaging
information

Master carton dimensions(mm): L135*W115*H310mm(Box)
L670Xw500xH350mm(Outer carton)
Quantity per carton(PCS): 1pc/box
12 pcs/CTN
G.W. Carton (Kg): 1.25kg/box
16.5kg/carton

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
20W >80 10° 2040 lm 3000K   TL224-20W-830-W-10
  TL224-20W-830-B-10
2050 lm 4000K   TL224-20W-840-W-10
  TL224-20W-840-B-10
20° 2060 lm 3000K   TL224-20W-830-W-20
  TL224-20W-830-B-20
2060 lm 4000K   TL224-20W-840-W-20
  TL224-20W-840-B-20
38° 2050 lm 3000K   TL224-20W-830-W-38
  TL224-20W-830-B-38
2040 lm 4000K   TL224-20W-840-W-38
  TL224-20W-840-B-38
>90 10° 1730 lm 3000K   TL224-20W-930-W-10
  TL224-20W-930-B-10
1870 lm 4000K   TL224-20W-940-W-10
  TL224-20W-940-B-10
20° 1750 lm 3000K   TL224-20W-930-W-20
  TL224-20W-930-B-20
1900 lm 4000K   TL224-20W-940-W-20
  TL224-20W-940-B-20
38° 1750 lm 3000K   TL224-20W-930-W-38
  TL224-20W-930-B-38
1890 lm 4000K   TL224-20W-940-W-38
  TL224-20W-940-B-38

Size
