RL071-40W
Pro

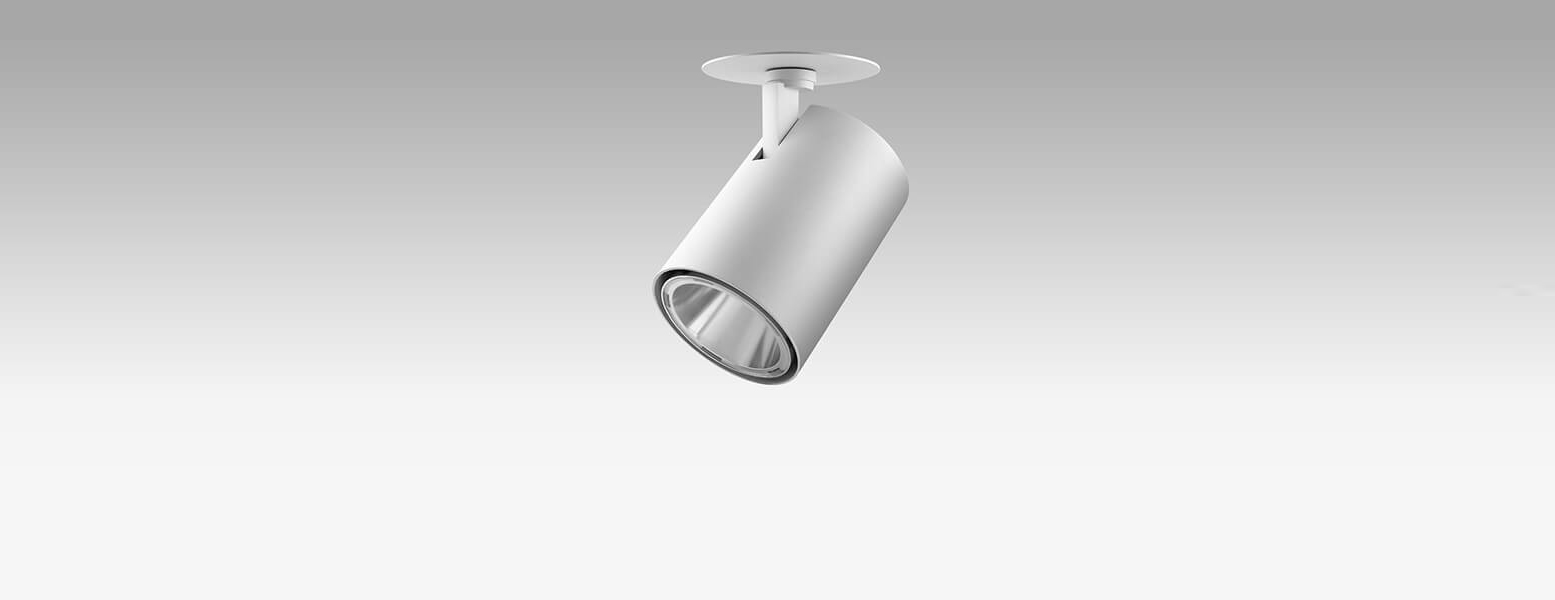

Ceiling Recessed Spotlights
RL071-30W
Highly efficient and functional fixtures which can almost give an answer to all lighting demand. Adjustable tilting mechanism which allows us to direct the light to the point we desire makes it a versatile lighting tools for architects and designers. Up to 2900lm light output, these spots guarantee a powerful warm light with a low energy consumption and the perfect balance between light quality and energy efficiency.
Product
information
| Light source: | COB |
| Input Voltage: | AC220~240V 50/60Hz |
| LED Current: | 700mA (35-37V) |
| Rated life: | > 50,000 hours |
| Operating temperature: | -20℃~40℃ |
| Storage temperature: | -30℃~60℃ |
| Certificate: | CE RoHS |
| Weight: | 1.45KG |
Packaging
information
| Master carton dimensions(mm)： |
L230*W140*H280mm (Box) L730xW310xH350mm(Outer carton ) |
| Quantity per carton(PCS)： |
1pc/box 6 pcs/CTN |
| G.W. Carton (Kg)： |
1.55kg/box 10.5kg/carton |
System
overview
| Power | CRI | Beam Angle | Luminous | CCT | Housing | Part Number |
| 30W | >80 | 12° | 2828 lm | 3000K | RL071-30W-830-W-12 | |
| 3023 lm | 4000K | RL071-30W-840-W-12 | ||||
| 20° | 2853 lm | 3000K | RL071-30W-830-W-20 | |||
| 3045 lm | 4000K | RL071-30W-840-W-20 | ||||
| 45° | 2735 lm | 3000K | RL071-30W-830-W-45 | |||
| 2910 lm | 4000K | RL071-30W-840-W-45 | ||||
| >90 | 12° | 2580 lm | 3000K | RL071-30W-930-W-12 | ||
| 2688 lm | 4000K | RL071-30W-940-W-12 | ||||
| 20° | 2594 lm | 3000K | RL071-30W-930-W-20 | |||
| 2716 lm | 4000K | RL071-30W-940-W-20 | ||||
| 45° | 2478 lm | 3000K | RL071-30W-930-W-45 | |||
| 2594 lm | 4000K | RL071-30W-940-W-45 |
Downloads

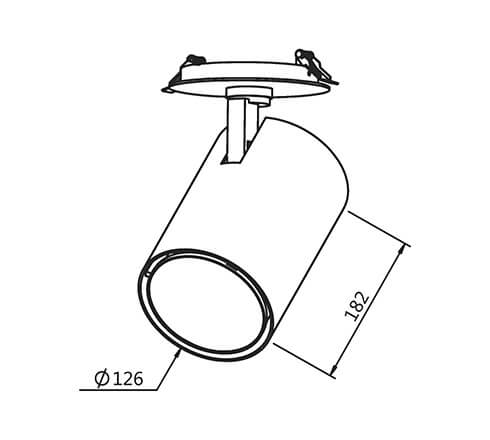

Size
Need more informations? Contact us
