48V Track Mounted

TL14-30W

This track spot is featured with integrated design, powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and cross accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 12,20 and 45 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 700mA,35-37V
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: TUV/CE/RoHS
Weight: 1.75KG

Packaging
information

Master carton dimensions(mm): L245*W245*H220mm(Box)
L520xW520xH460mm(Outer carton)
Quantity per carton(PCS): 1pc/box
8pcs/CTN
G.W. Carton (Kg): 1.95kg/box
17kg/carton

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
30W >80 12° 2830 lm 3000K   TL144-30W-830-W-12
  TL144-30W-830-B-12
3030 lm 4000K   TL144-30W-840-W-12
  TL144-30W-840-B-12
20° 2860 lm 3000K   TL144-30W-830-W-20
  TL144-30W-830-B-20
3050 lm 4000K   TL144-30W-840-W-20
  TL144-30W-840-B-20
45° 2740 lm 3000K   TL144-30W-830-W-45
  TL144-30W-830-B-45
2920 lm 4000K   TL144-30W-840-W-45
  TL144-30W-840-B-45
>90 12° 2590 lm 3000K   TL144-30W-930-W-12
  TL144-30W-930-B-12
2690 lm 4000K   TL144-30W-940-W-12
  TL144-30W-940-B-12
20° 2600 lm 3000K   TL144-30W-930-W-20
  TL144-30W-930-B-20
2720 lm 4000K   TL144-30W-940-W-20
  TL144-30W-940-B-20
45° 2480 lm 3000K   TL144-30W-930-W-45
  TL144-30W-930-B-45
2600 lm 4000K   TL144-30W-940-W-45
  TL144-30W-940-B-45

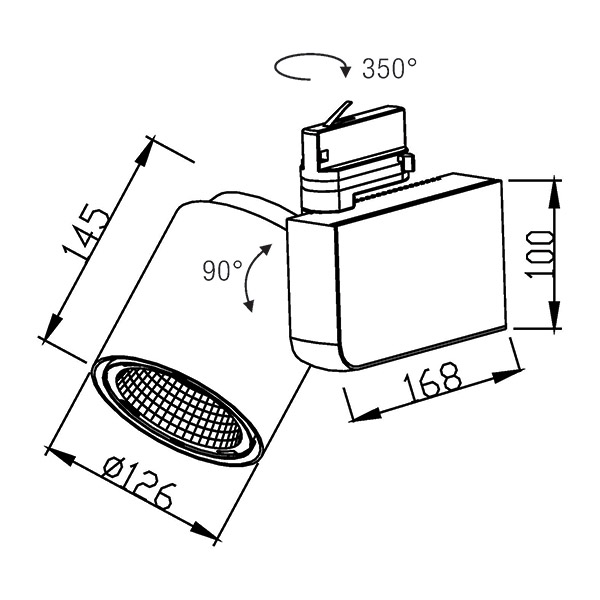

Size
