Track Lighting

TL10-40W

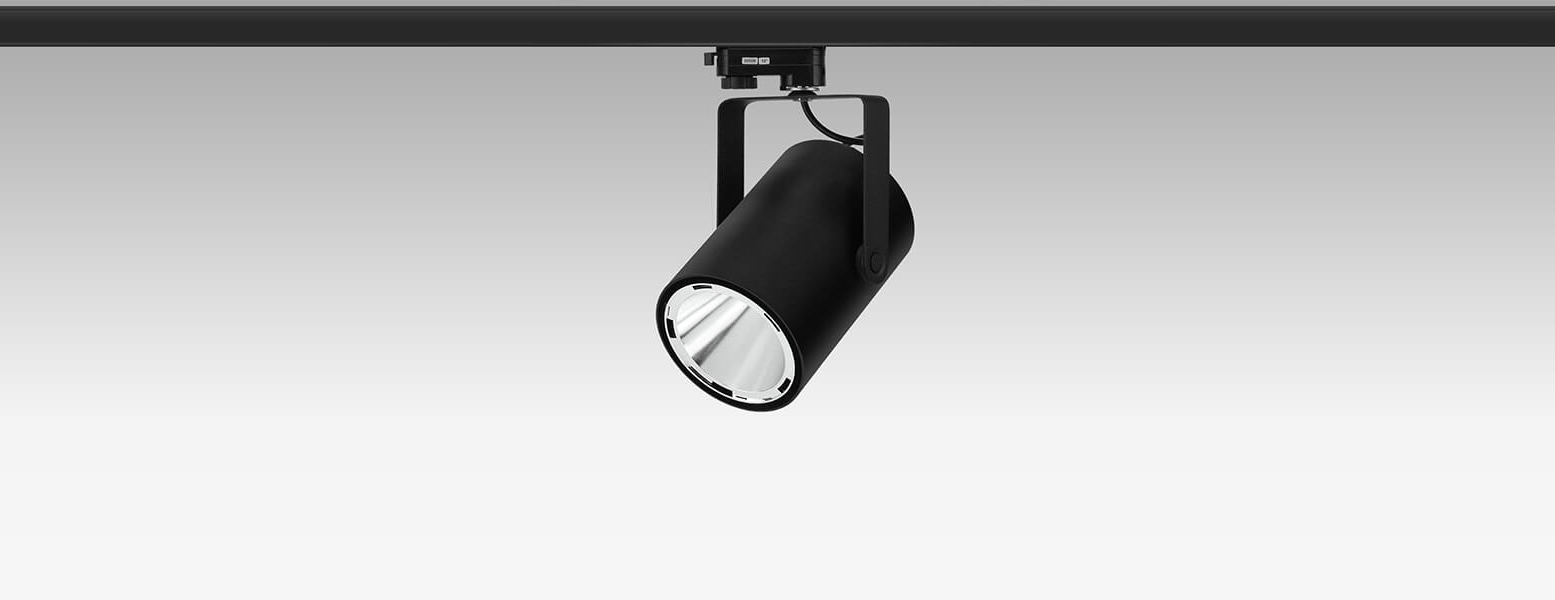

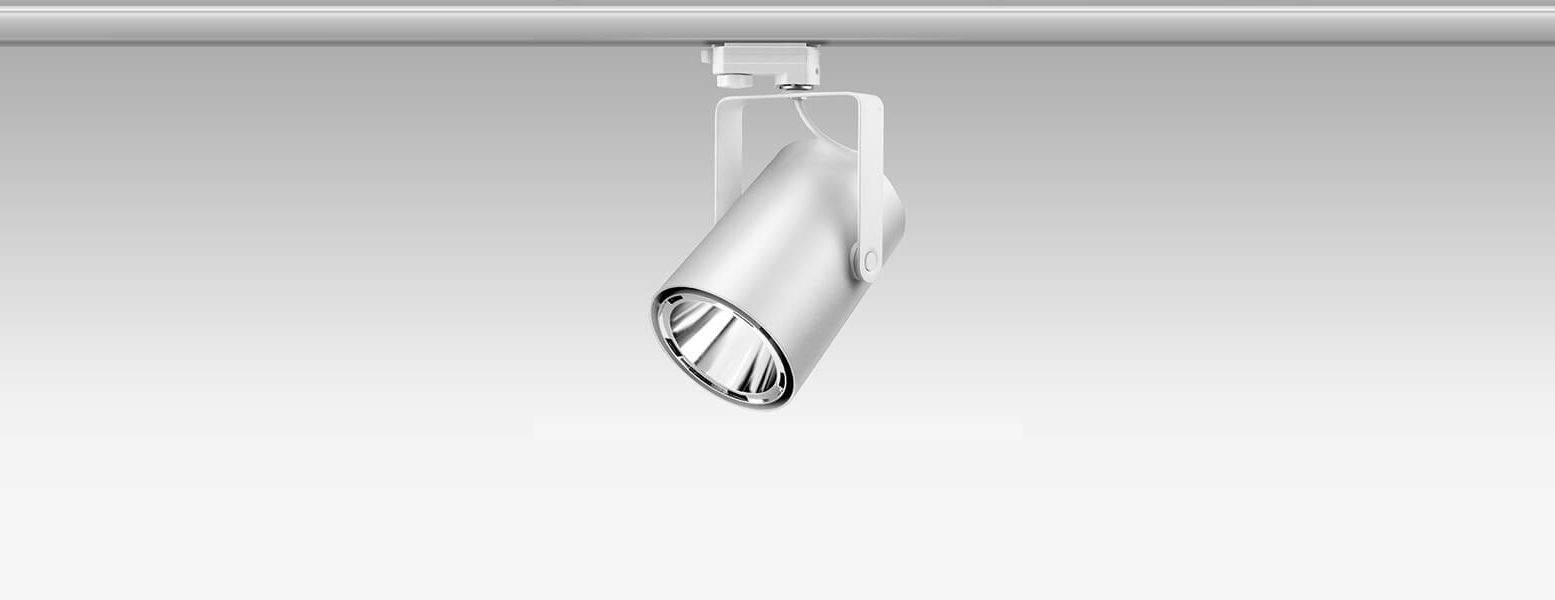

This track spot is featured with integrated design, powerful light output (up to 3000 lumens), interchangeable reflector system of high efficiency (up to 93%) and perfect glare control optics (UGR<13). Plus honeycomb and barn door accessories, all these make the product a perfect versatile lighting tool that can be used for retail shops, showrooms, public buildings and museums. Moreover, the highly efficient reflector with 12,20 and 45 degrees beam angle in combination with the latest COB LED technology makes the product stand out from its counterparts and an ideal choice for both accent and general lighting applications. This track mounted luminaire is also available in pendant and surface mounted forms.

Product
information

Light source: COB
Input Voltage: AC220~240V 50/60Hz
Current: 700mA,35-37
Rated life: >50,000 hours
Operating temperature: -20℃~40℃
Storage temperature: -30℃~60℃
Certificate: TUV/CE/RoHS
Weight: 1.75KG

Packaging
information

Master carton dimensions(mm): L140*W140*H340mm(Box)
L720xW310xH370mm(Outer carton)
Quantity per carton(PCS): 1pc/box
10 pcs/CTN
G.W. Carton (Kg): 2.0kg/box
21.5kg/carton

System
overview

Power CRI Beam Angle Luminous CCT Housing Part Number
40W >80 12° 4140 lm 3000K   TL104-40W-830-W-12
  TL104-40W-830-B-12
4420 lm 4000K   TL104-40W-840-W-12
  TL104-40W-840-B-12
20° 4180 lm 3000K   TL104-40W-830-W-20
  TL104-40W-830-B-20
4350 lm 4000K   TL104-40W-840-W-20
  TL104-40W-840-B-20
45° 4030 lm 3000K   TL104-40W-830-W-45
  TL104-40W-830-B-45
4140 lm 4000K   TL104-40W-840-W-45
  TL104-40W-840-B-45
>90 12° 3530 lm 3000K   TL104-40W-930-W-12
  TL104-40W-930-B-12
3700 lm 4000K   TL104-40W-940-W-12
  TL104-40W-940-B-12
20° 3550 lm 3000K   TL104-40W-930-W-20
  TL104-40W-930-B-20
3740 lm 4000K   TL104-40W-940-W-20
  TL104-40W-940-B-20
45° 3400 lm 3000K   TL104-40W-930-W-45
  TL104-40W-930-B-45
3650 lm 4000K   TL104-40W-940-W-45
  TL104-40W-940-B-45

Size
